Solar Panel Kits

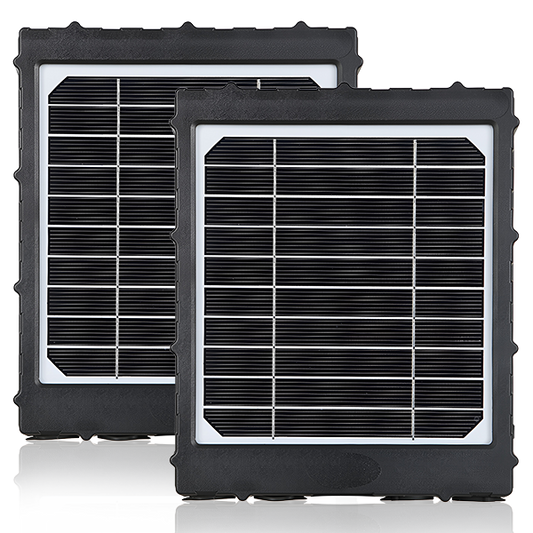

Solar Panel Kits 3W 8000mAh 12V/9V/6V output Mini Portable Outdoor or Indoor Rechargeable Power Supply for Hunting Trail Cameras

About this item:

3W monocrystalline silicon high quality solar panel, High conversion rate up to 23% helps saving power to a great extent, higher than most of the sales on the market,  works well even in cloudy days.

The product has built in 12V/9V/6V voltage output, and comes with three DC lines: 4.0*1.7, 5.5*2.1, 3.5*1.35mm, which can work with all the trail cameras on our website, and can also work with most of the trail cameras on the market.

High water resistance level IP66 makes the solar board very waterproof.

When connected to the camera, the solar panel charger and AA battery can work simultaneously.

How to Charge:

• Charging by sunshine, please let it face sunshine, and make there is no anything on it. No matter it is connected with camera or not, it can be charged freely. And during charging process, there is no red light working

• Charging by DC input, please use the input cable for charging; let the USB jack is connected with Adapter 5V/2A. The other jack of power input needs to be inserted in solar panel( IN DC 5V). No matter it is connected with camera or not, it can be charged freely. And during charging process, red light will work.

How to Let It Work:

There are Three output cables in gift box, please use any jack inserting to solar panel (OUT 12V, OUT 9V, OUT 6V), the other one needs to be inserted in device jack. During working time, red lights will not work. There is universal frame to fix solar panel. And there are two screw jacks on solar panel.
Please note solar panel and AA batteries can support camera at the same time.

How to Check Power Status

There is black round button beside "IN 5V", press it, red light will work, more lighting Leds, more power in solar panel.

Specifications:

Max. Power: 3W
Li battery Capacity: 8000mAh
External Input: 5V/2A
Maximum Output: DC 12V/1.2A; 9V/1.6A; 6V/2.4A

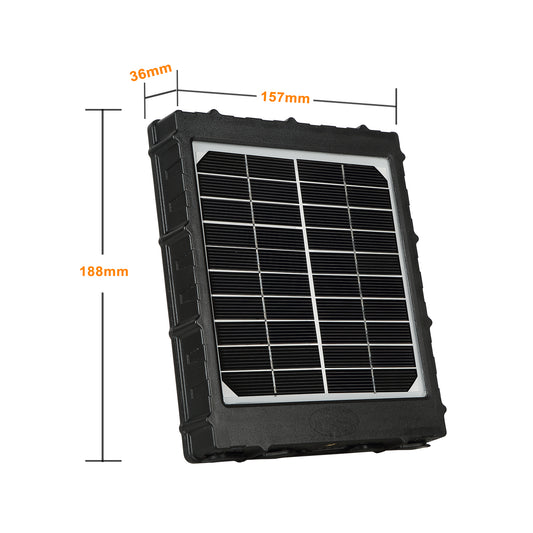

Solar Panel Size: 188(L)*157(W)*36mm(H)
Working Temperature: -20°C to 60°C/-4°F to 140°F
Waterproof: IP66
Certificate: CE FCC ROHS

Net Weight: 0.67KG
Gross Weight: 0.8KG
Giftbox Size: 200(L)*165(W)*85mm(H)

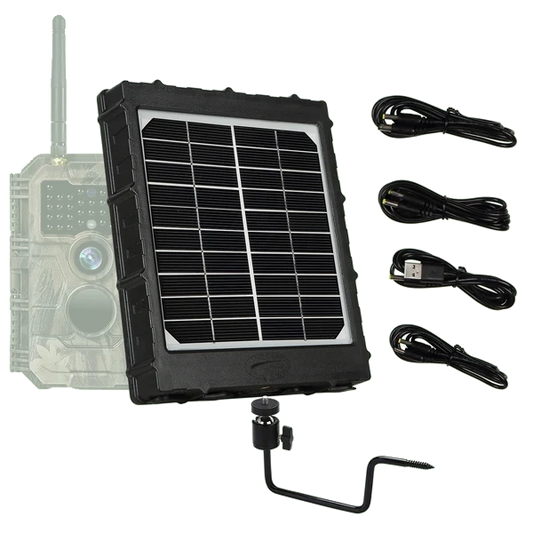

Accessories:  Power Cable ×4
                    Mount x 1
                    Bandage ×1
                    instruction manualx1

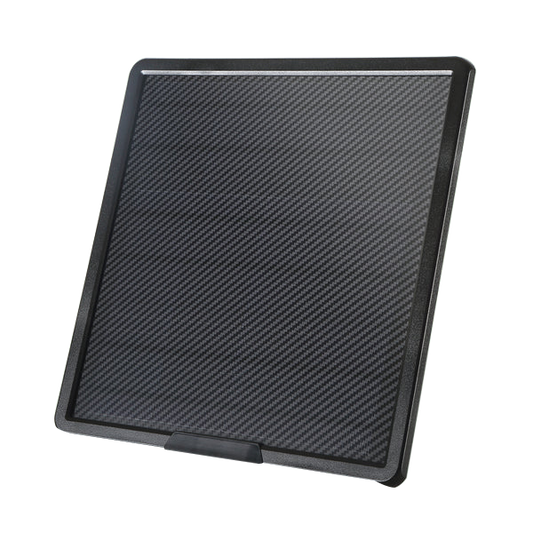

Solar Panel Kits 10W 25000mAh Indoor Outlet Charging or Outdoor Solar Charging, 5V Input,12V/9V/6V Output with USB-A as well as Type-C Output for all Wildlife Cameras, Mobiles, Laptops | BL25A

How to Charge:

• Charging by sunshine, please let it face sunshine, and make there is no anything on it. No matter it is connected with camera or not, it can be charged freely. And during charging process, there is no red light working.
• Charging by DC input, please use the input power adptor for charging, which is  5V/2A. The other jack of power input needs to be inserted in solar panel( IN DC 5V). No matter it is connected with camera or not, it can be charged freely. And during charging process, red light will work.

How to Let It Work:

There are 4 output cables in gift box, please use any jack inserting to solar panel (OUT 12V, OUT 9V, OUT 6V, USB-A/Type-C), the other end needs to be inserted in device jack. During working time, red lights will not work.
Please note solar panel and AA batteries can support camera at the same time.

How to Check Power Status

There is black round button beside "IN 5V", press it, red light will work, more lighting Leds, more power in solar panel.

Specifications:

Accessories:

Power Cable ×4
Power Adptor ×1
Tree Mount x 1
Strap ×1
Instruction manualx1
